Share VNC connection

In this chapter, you will learn how to share a Virtual Network Computing (VNC) connection via bestzero®.



First, make sure that the server on which the Hive is installed can establish a VNC connection to the desired address.





1. Create a new app



Instructions for this can be found in the chapter Create a new app.



App VNC

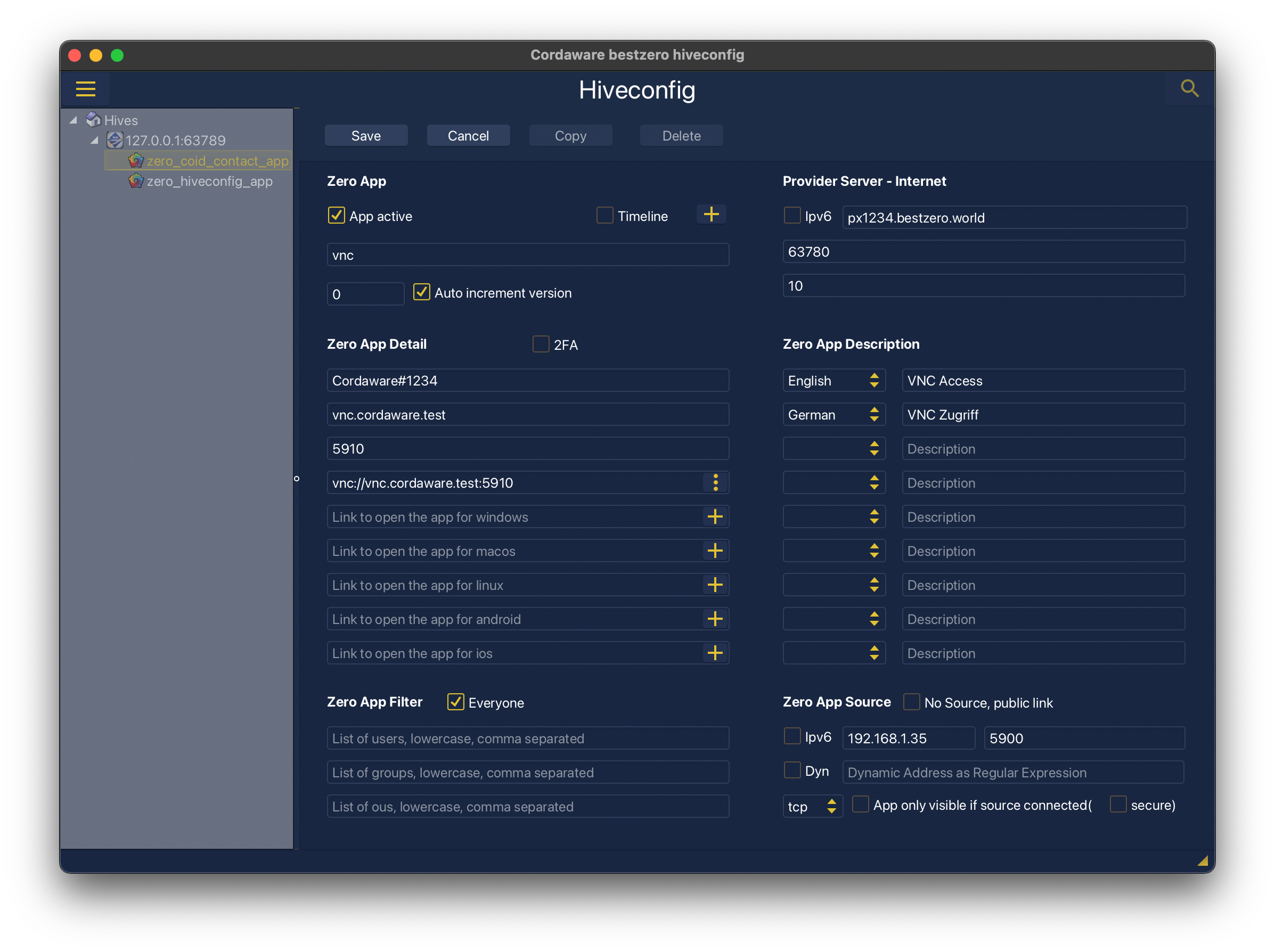

2. Zero App Detail



Here you specify the address, port and optionally the link to open via a VNC client.



Example:



Address

vnc.cordaware.test

Port(Range) Port,Port1-Port2

5910

Link to open the app, for all operating systems

vnc://vnc.cordaware.test:5910



The address "vnc.cordaware.test" and the port "5910" can be replaced at will.





Please note:

Depending on the installed VNC client, the link may vary!





3. Zero App Source



Specify the IP address or FQDN to the remote access destination, port 5900 and TCP as the protocol.



Example:



Address

192.168.1.35

Port(Range) Port,Port1-Port2

5900
