Time controlled app

In this chapter you will learn which time settings you can use to make your apps available in the Appsbox only at certain times.



hive_config_timeline_example_settings

hive_config_timeline_example_test

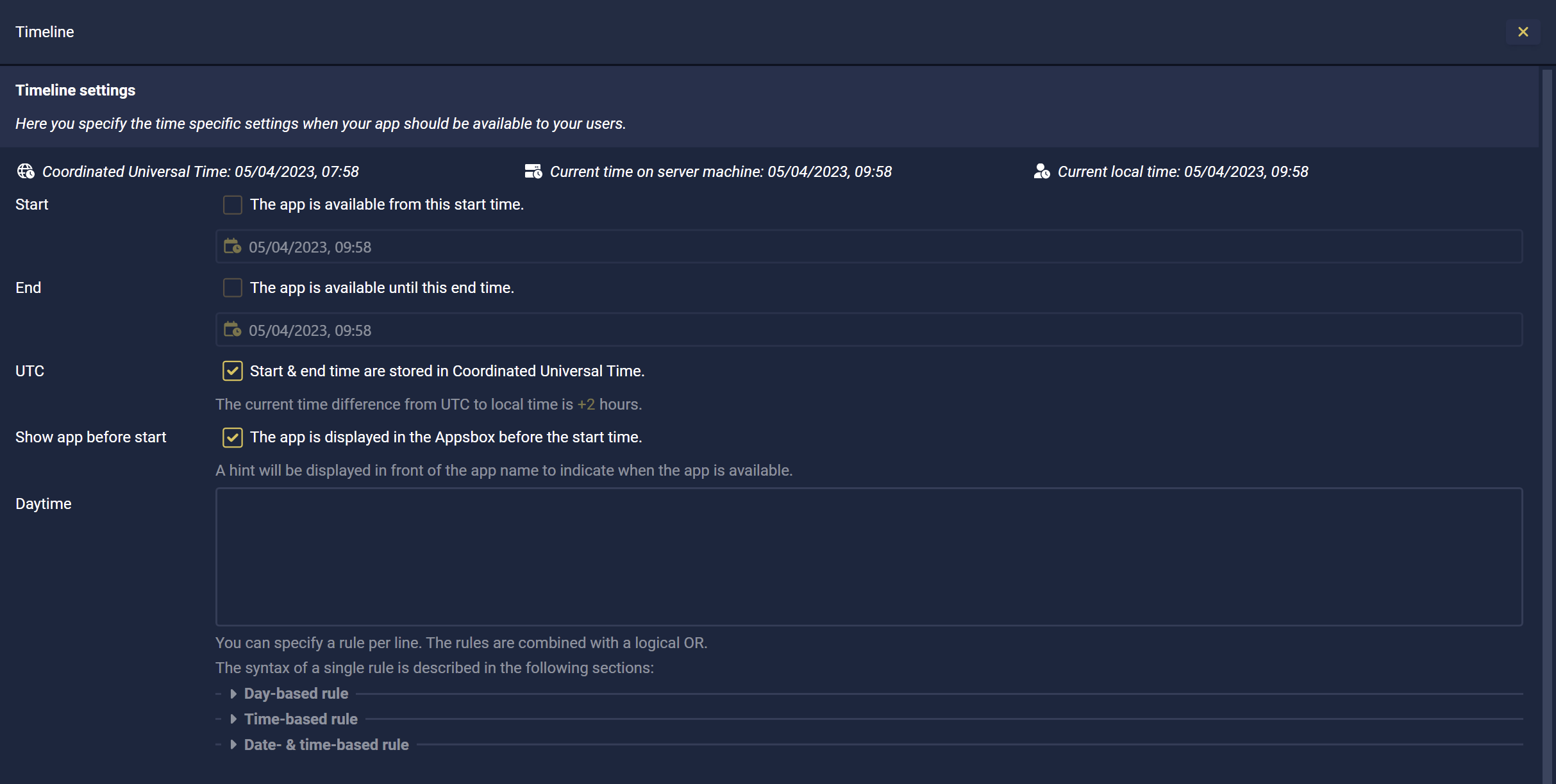

In this menu you can define the exact start and end time when your app should be available for your users.

With the help of the "Daytime" settings you can also make your app available periodically.

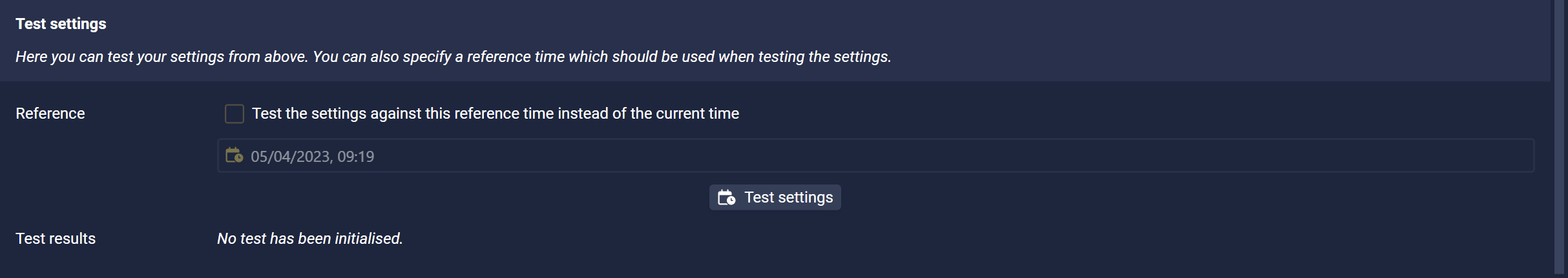

You can check your time settings at any time using the test_settings "Test Settings" button to see if your app is available at the desired times.



Start

Activate this checkbox if you want your app to be available to your users only from a certain start time.

Also define the desired start date and time.





An app that is only available at a time in the future is displayed to your users with a note as of when this app is active.

An hourglass icon is also displayed in front of the log, which can be used to filter by in the Appsbox.

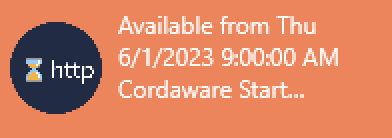

Example:



hive_config_timeline_example_start



In this example, the start time was set to 01 June 2023, 09:00.

End

Select this checkbox if you want your app to be available to your users only until a specific end time.

Also define the desired end date and time.





An app that was available until a point in time in the past will no longer be displayed to your users, it will be hidden.

Utc

Select this check box if you want the defined dates and times to be treated as UTC.





Above the setting options you will see 3 different dates and times, which will give you an orientation on how to configure your time settings:



Utc: The current time in UTC.

Hive local time: The current time of the server machine on which the Hive is installed.

Your local time: The current time on your current machine that you used to open the Hive Configurator application.

Show app before start

Select this checkbox if you want your app, which is only available at a time in the future, to be displayed with the above note.

If you deactivate this checkbox, this app will not be displayed, it will only be shown when the start time is reached.

Reference

Activate this check box if you want to use a specific reference time for checking your desired times.

In addition, define the desired reference date and time.



If you deactivate this check box, the current time will be used as the reference time.





Daytime: Format D=Day, T=Time, N=NOT



With the help of this setting you can define your time settings periodically repeating.

The syntax of this functionality is explained in more detail below.



You can enter several lines for the "Daytime", all lines will be linked by a logical OR.



hmtoggle_arrow1Certain days of the week



hmtoggle_arrow1Specific time period



hmtoggle_arrow1Specific time period on specific days of the week



hmtoggle_arrow1Negation of certain days of the week and certain periods of time





When you are satisfied with your desired time settings, you can return to the app creation using the "Arrow" button and apply them there using the "Save" button.





Summary example



In this summary example, we create a time setting that makes this app available to our users on Mondays through Fridays.

Here, the app is timed from 09:00 to 17:00 on Thursdays and 09:00 to 12:30 on Fridays.

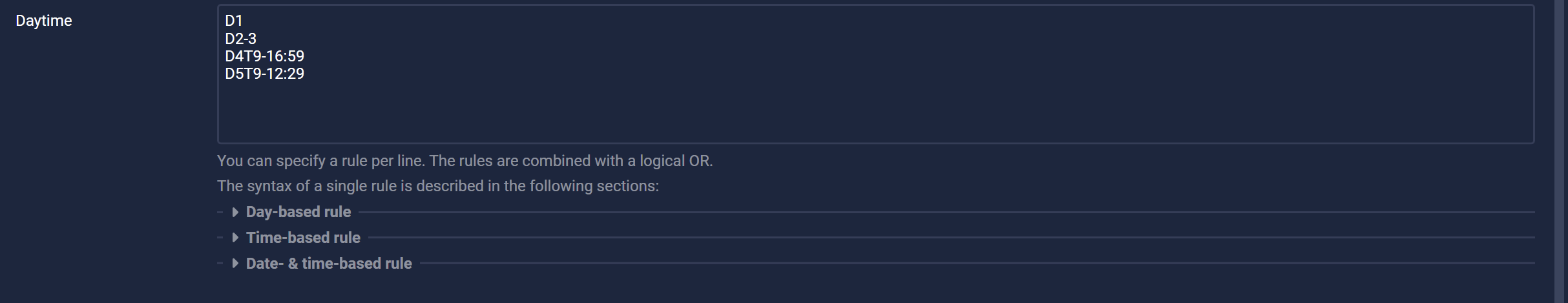

The "Daytime" settings look like this:



hive_config_timeline_daytime

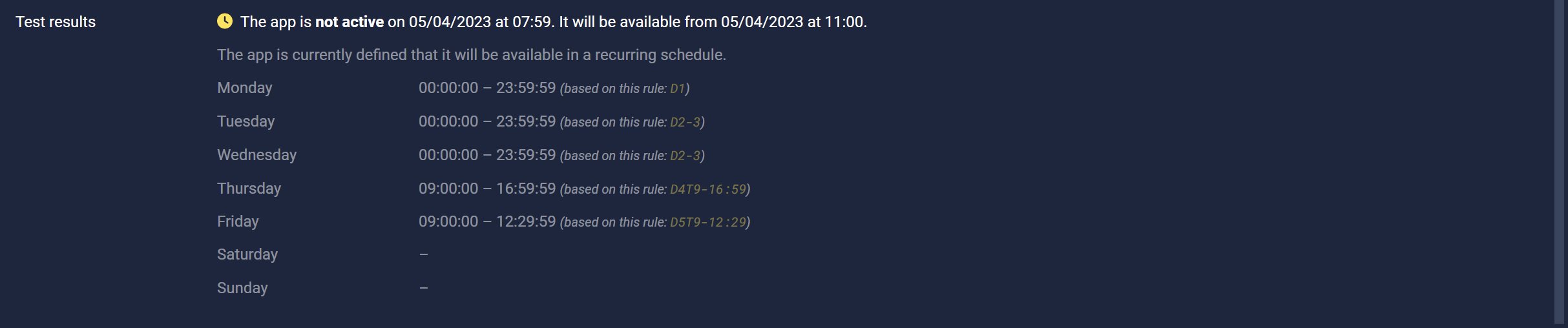

Clicking on the test_settings button results in the following test results:



hive_config_timeline_result



Here you can see on which days the app is now available. In addition, at the end of the line it is indicated which of the rules defined at the beginning is responsible for the time restriction coming about for this day.

If multiple rules are used to restrict the time settings on one day of the week, they will be listed comma-separated at the end of the line.
